Getting Started
2.3.1
Attaching the PIM
To attach the PIM:
1. Seat the PIM in the 80-pin, elevated, male connectors that encircle the
PIC18F8722 (see Figure 2-5).

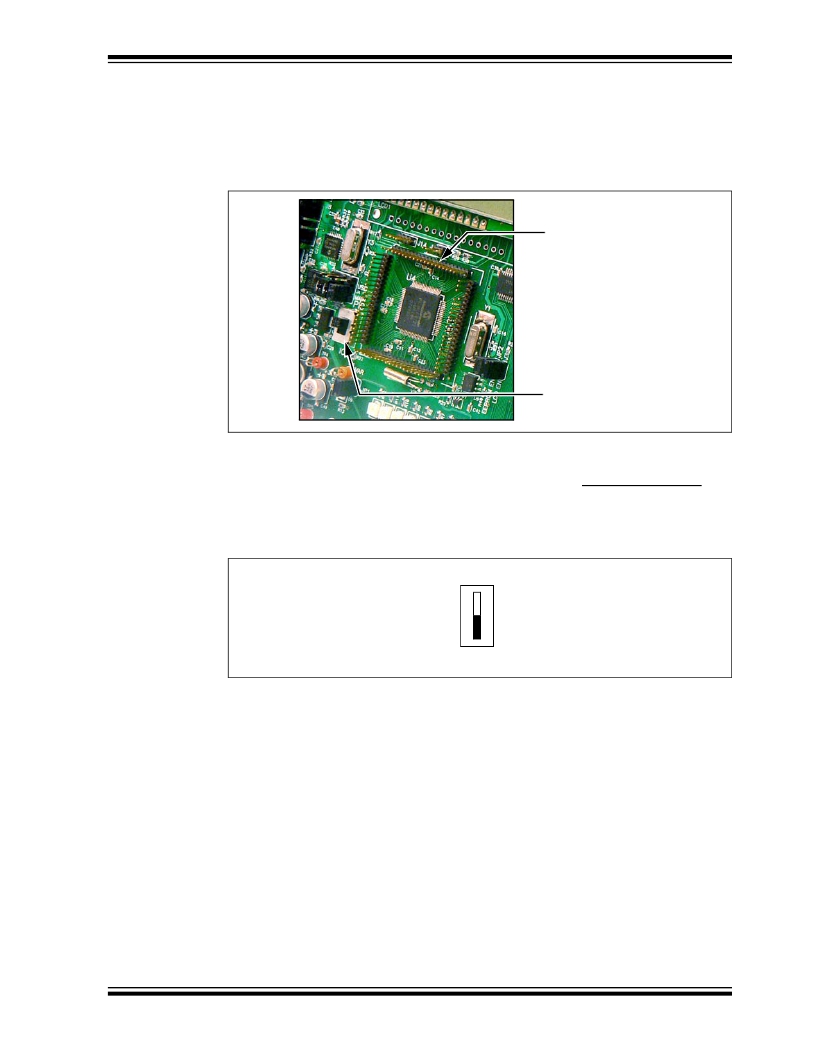

FIGURE 2-5:
PIM CONNECTORS AND S4 SWITCH
PIM Connectors
S4 Switch
Alternately, an In-Circuit Emulator (ICE) can be attached to the male connectors.
This enables in-circuit emulation and user development and debugging of code.
For information on this use, see the Microchip web site (http://microchip.com).
2. To designate the PIM-mounted device as the main microcontroller, set Switch S4
(shown in Figure 2-5) to ICE (see Figure 2-6).
FIGURE 2-6:
S4 SWITCH – SETTING FOR PIM-MOUNTED DEVICES
PIC ? MCU
S4
ICE
3. If you are converting from the board’s default V DD of 5V, see “Varying the
Device Voltage (5V/3.3V)” on page 14 .
? 2008 Microchip Technology Inc.
DS51721B-page 13
